Getting Started

This guide walks through setting up a container image, running the test analysis, and processing your own data.

Prerequisites

  • Docker (install) or Singularity/Apptainer (available on most HPC systems)
  • At least 4 GB RAM allocated to the container
  • Paired-end sequencing data as .fastq.gz files

Step 1: Obtain the Container Image

Launch Docker, then run:

docker pull rlporter24/dualindex-demux:1.0

This downloads the pre-built image containing all code, dependencies, and test data.

Advanced: Build from Dockerfile

If you prefer to build the image yourself, download docker-demux.zip from the Zenodo repository and unzip it. The file structure should look like:

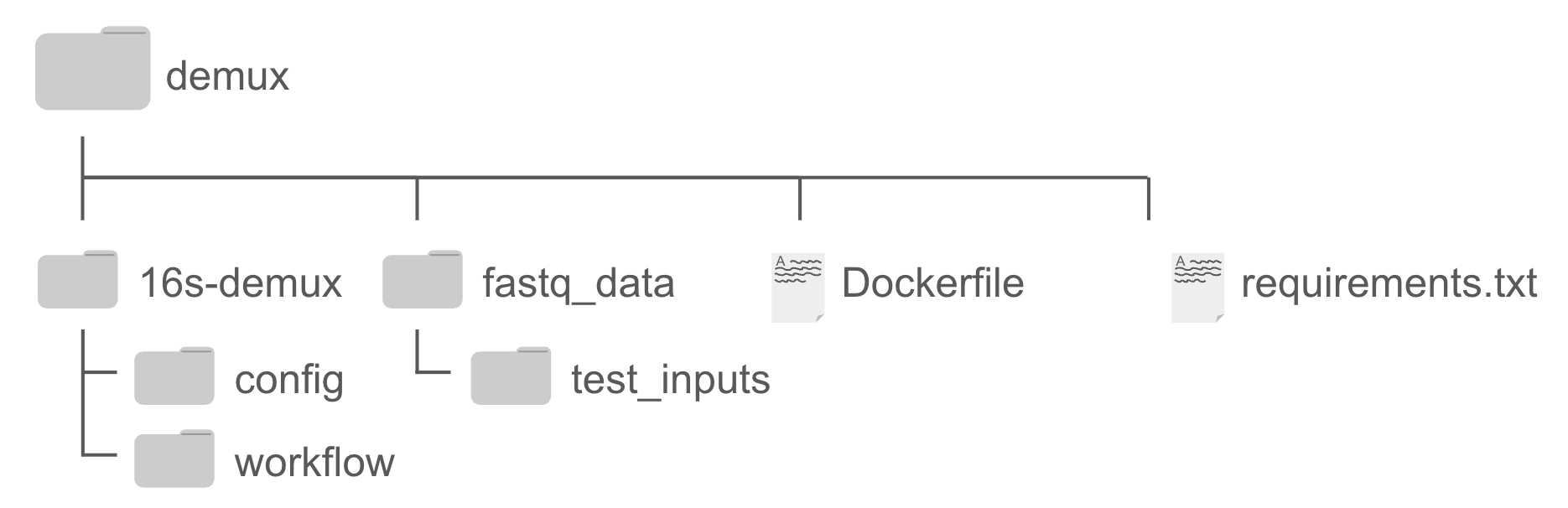

Docker build file structure

Dockerfile and requirements.txt are needed for the build. The fastq_data directory contains test data, and all analysis code lives in 16s-demux/.

Build the image:

docker build -t {name}:{version} .

Replace {name}:{version} with your desired image name and version tag. The build takes a few minutes. A successful build ends with output like:

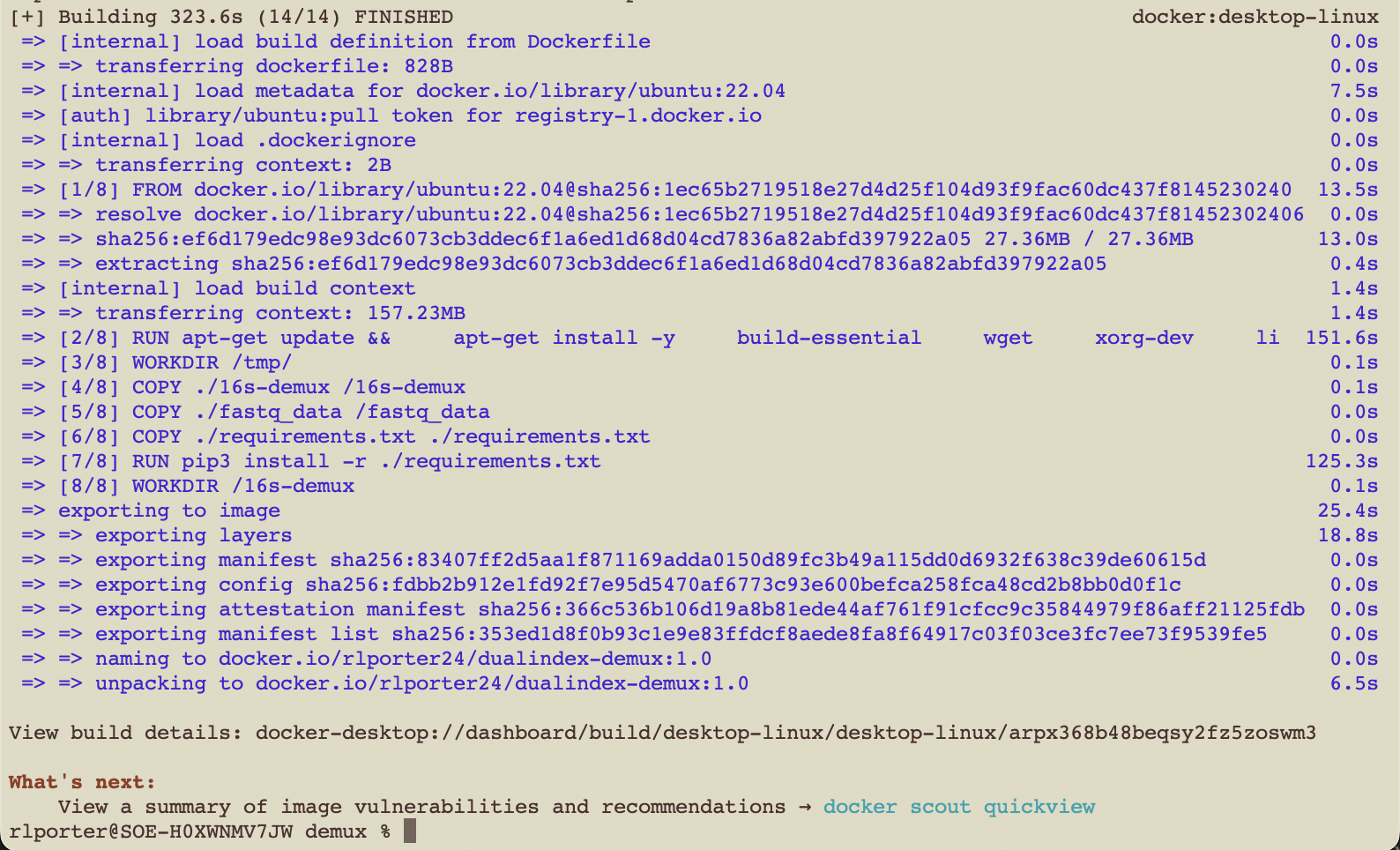

Docker build success

Warning

Building requires more resources than a typical HPC login node provides. Use a compute node or allocate sufficient resources through a job manager.

Build from Definition File

Download demux.zip from the Zenodo repository and unzip it. The file structure should look like:

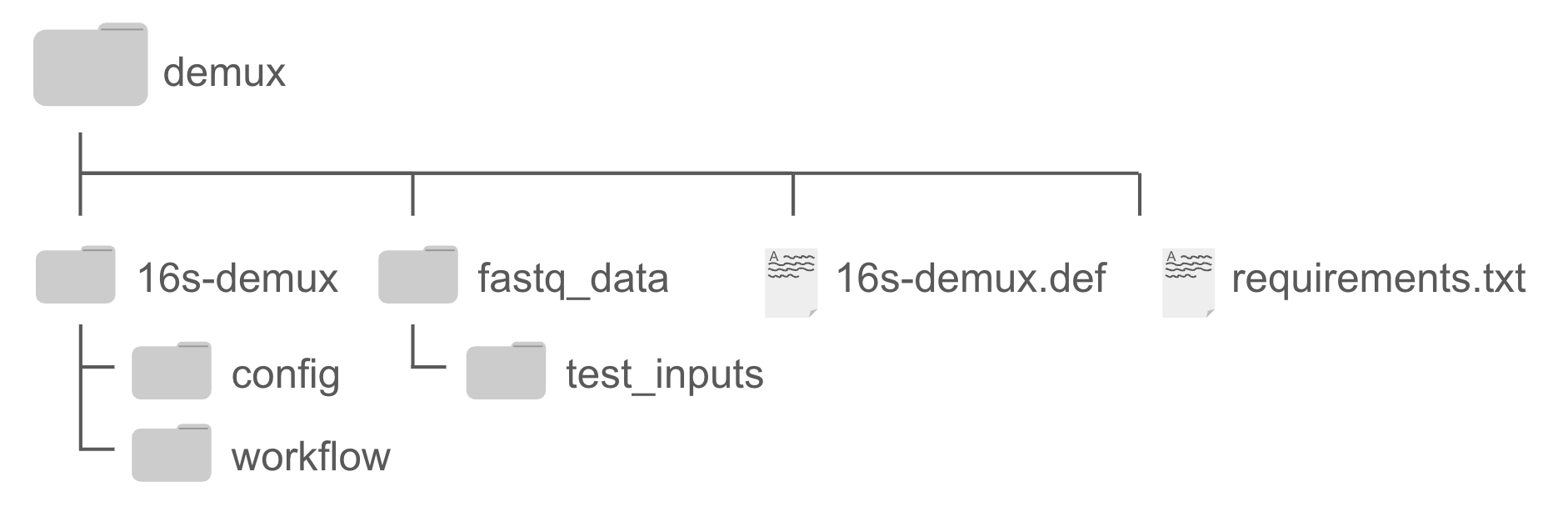

Singularity build file structure

16s-demux.def and requirements.txt are needed for the build. The fastq_data directory contains test data, and all code lives in 16s-demux/.

Navigate to the directory containing 16s-demux.def and build:

singularity build demux-image.sif 16s-demux.def

The build takes less than 10 minutes. A successful build ends with output like:

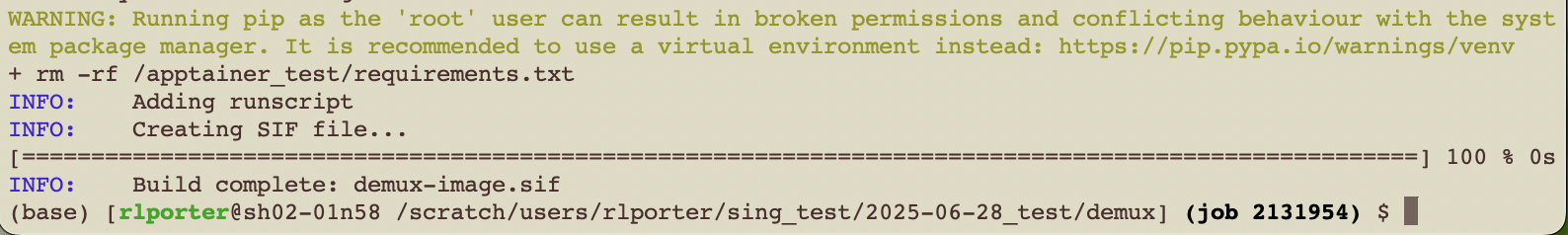

Singularity build success

The file demux-image.sif will be created in your current working directory.

Warning

Building requires more resources than a typical HPC login node provides. Use a compute node or a job manager. A template Slurm script (slurmBuild.sh) is included in demux.zip — edit the SBATCH parameters for your system.

Step 2: Run the Test Analysis

Run the included test data to verify your setup works correctly.

Start an interactive container:

docker run -it rlporter24/dualindex-demux:1.0

Note

If you built your own image, replace rlporter24/dualindex-demux:1.0 with the {name}:{version} you used.

All test files are included in the container. Run the test:

snakemake --cores 1 -s test_Snakefile

Replace 1 with the desired number of cores. This should complete in under 5 minutes.

Interactive mode:

Open a shell in the container:

singularity shell demux-image.sif

Run the test from the 16s-demux directory:

snakemake --cores 1 -s test_Snakefile

Using a job manager (e.g., Slurm):

Edit the included submit_test_snakemake.sh script for your system, then submit it. The script runs:

singularity exec ../demux-image.sif snakemake --cores 1 -s test_Snakefile

Replace 1 with the desired number of cores. This should complete in about 10 minutes.

Verifying Test Output

A successful test run produces output like:

Test success output

Within workflow/test_out/, you should see demux and trimmed directories:

  • demux/ — four sets of 3 files (1 .extract.log + 2 .fastq.gz each), plus R1/ and R2/ directories. Each sample should have 8 files ending with -L*.fastq.gz (phases 0–7):

    Demux output structure

  • trimmed/ — subdirectories group1 and group2, each containing R1/, R2/, removed/, plus lowReadsSummary.txt and summary.txt:

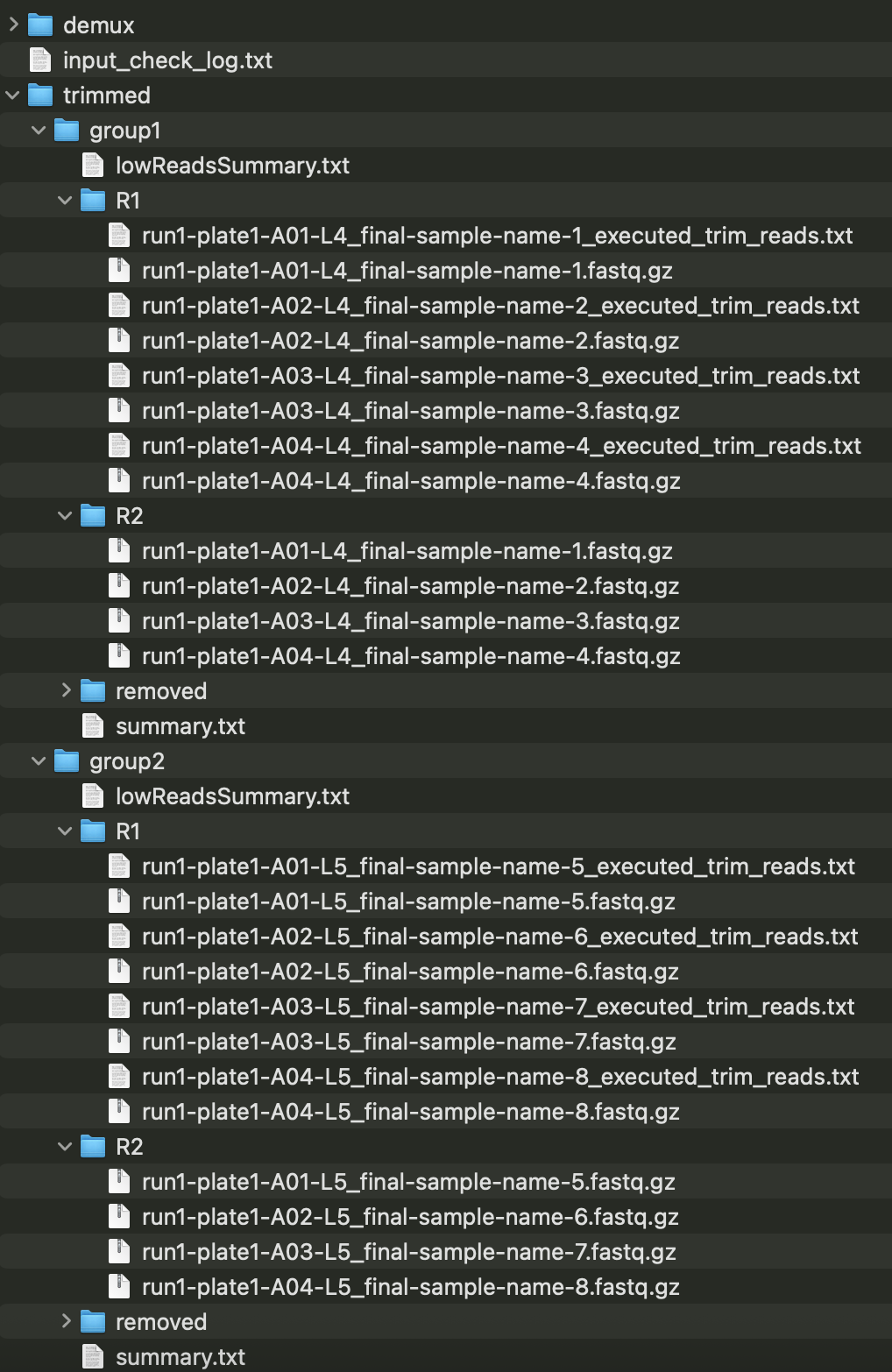

    Trimmed output structure

Success

If all these files are present, the test run was successful.

Step 3: Run Your Analysis

1. Start a container:

docker run -it rlporter24/dualindex-demux:1.0

2. Copy input files into the container:

From a separate terminal, use docker cp to transfer your data:

docker cp {local_path} {CONTAINER}:{container_path}
  • {local_path} — path to a file or directory on your machine
  • {CONTAINER} — the container name (find it with docker container ls)
  • {container_path} — destination path relative to the 16s-demux directory

Tip

Find your container name by running docker container ls or checking the Docker Desktop GUI.

3. Update configuration:

Edit config/config.yaml to set the paths for your samplesheet, fastqlist, and (if needed) indices file. See the Configuration page for details.

4. Dry run (recommended):

snakemake -n

This validates inputs and shows planned jobs without executing them.

5. Execute:

snakemake --cores 1

Replace 1 with the desired number of cores. A successful run ends with:

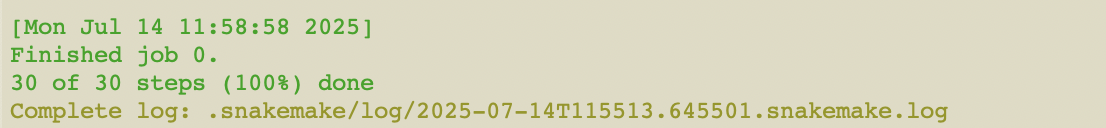

Snakemake success output

6. Transfer outputs:

docker cp {CONTAINER}:/16s-demux/workflow/out/ {local_path}

7. Clean up:

Exit the container (exit), then remove it:

docker rm {container_name}

Warning

This removes the container and all data inside it. Make sure all outputs are transferred before removing.

1. Prepare inputs:

Ensure your input files (fastq data, fastqlist, samplesheet) are accessible on the file system. Update config/config.yaml with the correct paths. See the Configuration page for details.

2. Dry run (recommended):

singularity shell demux-image.sif
snakemake -n

Submit a job that runs:

singularity exec ../demux-image.sif snakemake -n

3. Execute:

snakemake --cores 1

Edit the included submit_snakemake.sh script with your SBATCH parameters, then submit. The script runs:

singularity exec ../demux-image.sif snakemake --cores 1

Replace 1 with the desired number of cores. A successful run ends with:

Snakemake success output

Outputs are generated in workflow/out/. To exit an interactive shell, type exit.

Note

Running interactively is only recommended for testing or troubleshooting. Login nodes typically lack sufficient resources — use a compute node or job manager for real analyses.
